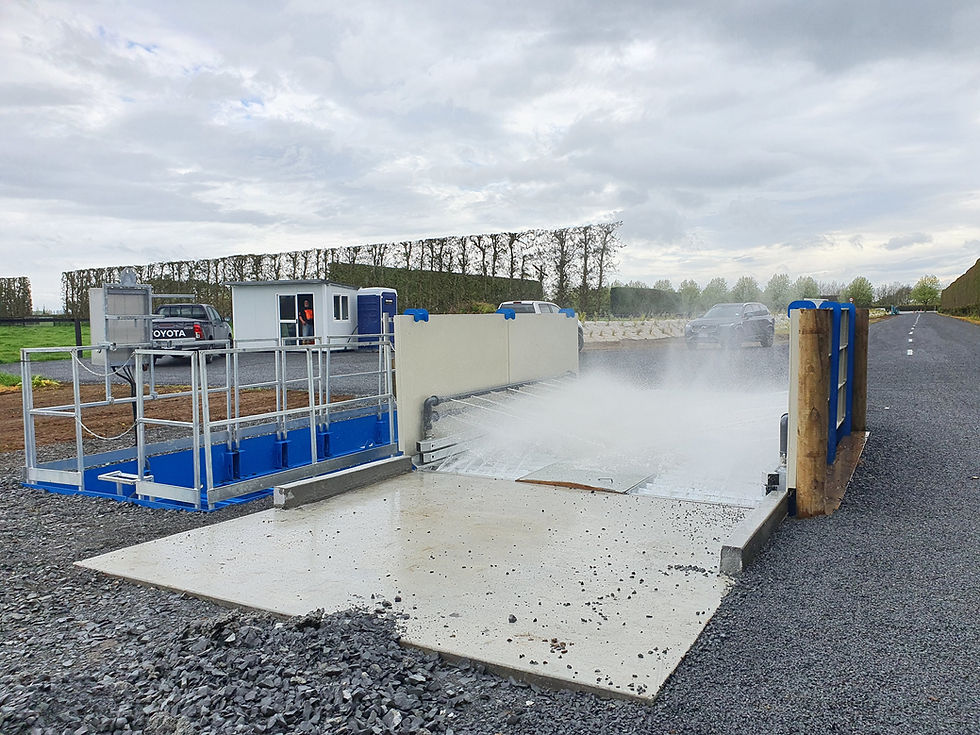

Mobydick Conline Kit Flex 400B - Semi Mobile Unit
HIRE - PURCHASE - LEASE
World Leading Mobydick Truck Wheel Wash Systems
Effective Washing Technology
Water treatment is via
sedimentation in the recycling tank. Sedimentation can be accelerated by adding a flocculant. The solids that settle out in the recycling tank should be extracted with an excavator or suctioned out with a suction vehicle at regular intervals (depending on how frequently the system is used).
•100% Water Recycling: includes full water recycling tank
• The Unit has 4m Wash Platform Length: allowing full tyre rotation
• Low Spray Fan Area: keeping drivers windscreen clear & safe
• Low-pressure - High-volume Pump
• Sensor Start/Stop
The modular concept for the construction industry
Specs | Amount | Measurement |
|---|---|---|
Length of wash unit | 400 | cm |
Clear drive through width of the wash unit (lane) | 280 | cm |
Maximum axle load | 15 | t |
Height of splash protection side walls | 136 | cm |
Nozzles (Core diameter min. 7 mm) | 130 | Pcs. |
Nozzle bars per side | 2 | Pcs |
Recycling tank volume | 20,0 | m³. |
Usable volume of operating water | 16,9 | m³ |
Sedimentation area of the recycling tank | 13,0 | m² |
Maximum pump performance | 5,000 | lpm |
Connected electrical load of the entire system | 11,2 | kW |
Sound emission | < 75 | dB |
