Mobile Sand Trap

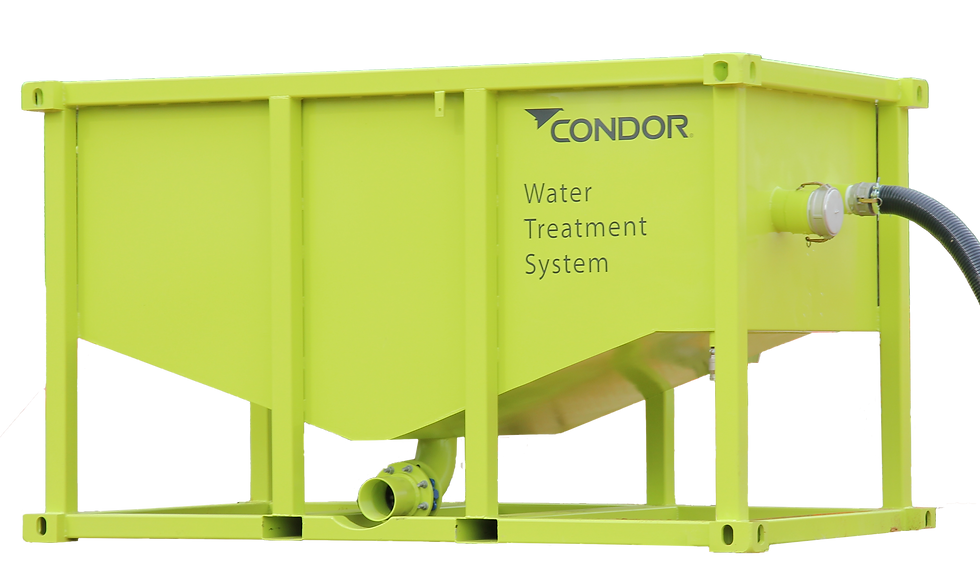

The Condor Mobile Sand Trap
Designed to remove sand and easily settleable material. Particularly suited to wellpoint dewatering projects.
Channel-shaped Lamella Clarifier System: Ensures maximum settlement per m² of unit footprint.
Forklift Pockets & Container Twist Locks: Making them simple to transport and double stack the units on sites restricted for space.
Multiple Inlet and Outlet Options
Inline Mag Flowmeter
Dosing Points
The Condor Sand Trap unmatched water treatment on sand and easily settable material, particularly on wellpoint dewatering projects.
Technical Specs XXL Tank with Large Hopper | Value |
|---|---|
Tank Body | S275 Mild Steel |
Lamella Tubes | PVC UV Stabilised |
Operational Flow Rate | 15m3 /hr |
Settlement Area | 20m2 |
Sludge Capacity | 0.5m3 |
Dimensions | 4020mm (L) x 1830 mm (W) x 2140 mm (H) |
Dry Shipping Weight | 1,320 kg |
Incoming Water Connection Size | 3 inch |
Outgoing Treated Water Connection Size | 4 inch |
Sludge Hopper Outlet Size | 4 inch |
Tank Capacity | 4,950 Litres |
