Condor XXL Water Treatment System
HIRE - PURCHASE - LEASE
Mobile Silt Settlement Tank

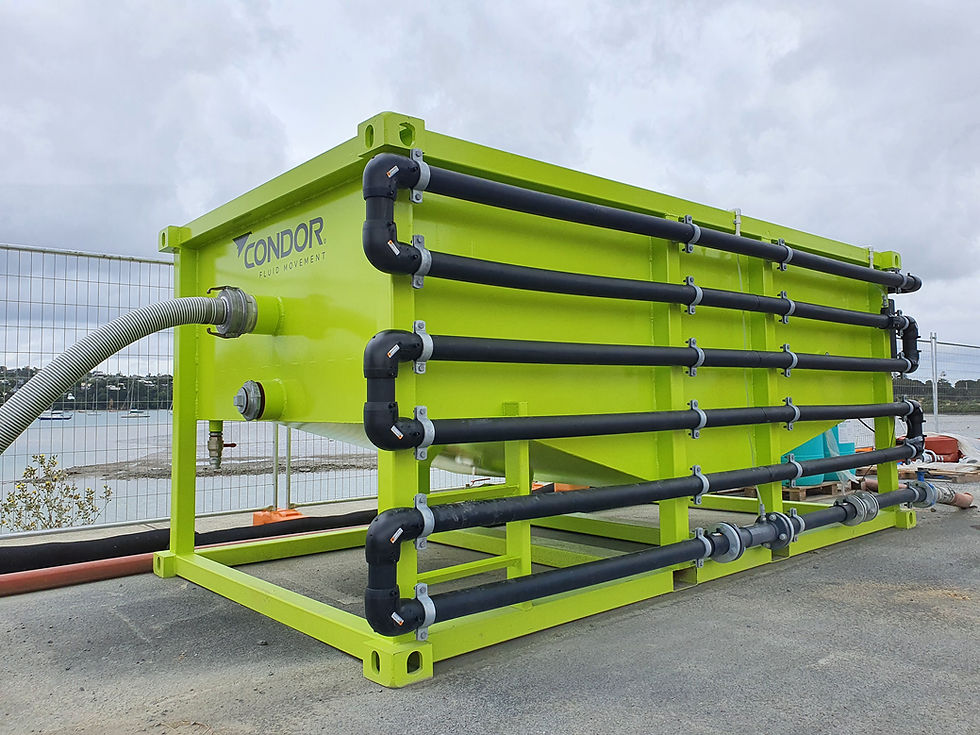

The Condor XXL Water Treatment System
Condor’s channel-shaped lamella clarifier system ensures maximum settlement per m² of unit footprint.
Channel-shaped Lamella Clarifier System: Ensures maximum settlement per m² of unit footprint.
Forklift Pockets & Container Twist Locks: Making them simple to transport and double stack the units on sites restricted for space.
30M x HDPE Pipe Retention Module
Lockable Dosing Pump Cabinet
ISO Lifting Blocks
230V Power Inlet: Multiple inlet and outlet options.
Inline Mag Flowmeter
Dosing Points
3" Inch Butterfly Valve
Solar Option
Option for Automated Sludge Removal Pump: Perfect for low maintenance.
The Condor XXL Water Treatment System is capable of handiling: Groundwater treatment, Site runoff treatment, Dewatering, Drilling, Piling & micro-tunneling, Stream & river works, Dredging & desilting, Plant & wheel washing, and Quarry wash plants.
Technical Specs XXL Tank | Value |
|---|---|
Tank Body | S275 Mild Steel |
Lamella Tubes | PVC UV Stabilised |
Operational Flow Rate | 40m3 /hr |
Settlement Area | 40m2 |
Sludge Capacity | 1m3 |
Dimensions | 4500mm (L) x 2360 mm (W) x 1920 mm (H) |
Dry Shipping Weight | 2.2 Tonne |
Incoming Water Connection Size | 3 inch |
Outgoing Treated Water Connection Size | 6 inch |
Sludge Hopper Outlet Size | 4 inch |
Tank Capacity | 10,800 Litres |
